- Materials
- Specifications
- Drawing

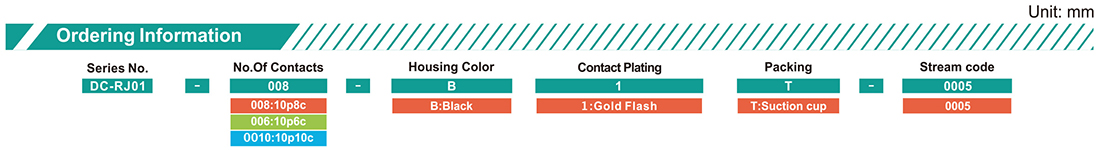

- Ordering Information
1. Housing: PBT or Nylon.
2.Contact: Copper Alloy.
3.Shielding: Copper Alloy.
2.Contact: Copper Alloy.
3.Shielding: Copper Alloy.
1.Contact Resistance: 20mΩ Max.
2. Dielectric Withstanding Voltage: 500V Ac(rms) For 1 Minute.
3.lnsulation Resistance: 1000MΩ Min.
4.Current Rating: 1.5A.
5.Voltage Rating: 125V.
6.Temperature: -40°℃~+ 85℃
2. Dielectric Withstanding Voltage: 500V Ac(rms) For 1 Minute.
3.lnsulation Resistance: 1000MΩ Min.
4.Current Rating: 1.5A.
5.Voltage Rating: 125V.
6.Temperature: -40°℃~+ 85℃
/Sites/dingkang/static/upload/image/20211221/1640068311281760.jpg
