- Materials
- Specifications
- Drawing

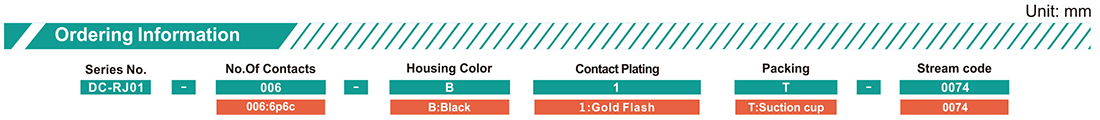

- Ordering Information
1.Housing: Nylon or PBT,UL 94 V-0 or V-2.
2.Contact: Copper Alloy
2.Contact: Copper Alloy
1.Contact Resistance: 20mΩ Max.
2.Dielectric Withstanding Voltage: 500V Ac(rms) For 1 Minute.
3.lnsulation Resistance: 1000MΩ Min.
4.Current Rating: 1.5A.
5.Voltage Rating: 125V.
6.Temperature: -40°℃~+ 85℃
2.Dielectric Withstanding Voltage: 500V Ac(rms) For 1 Minute.
3.lnsulation Resistance: 1000MΩ Min.
4.Current Rating: 1.5A.
5.Voltage Rating: 125V.
6.Temperature: -40°℃~+ 85℃
/Sites/dingkang/static/upload/image/20211221/1640079189989895.jpg
